Renogy 16BB N-Type 175 Watt 12V Solar Panel
$240.00
Sale price
$240.00
Regular price
Skip to product information
Renogy 16BB N-Type 175 Watt 12V Solar Panel
$240.00
Sale price
$240.00
Regular price

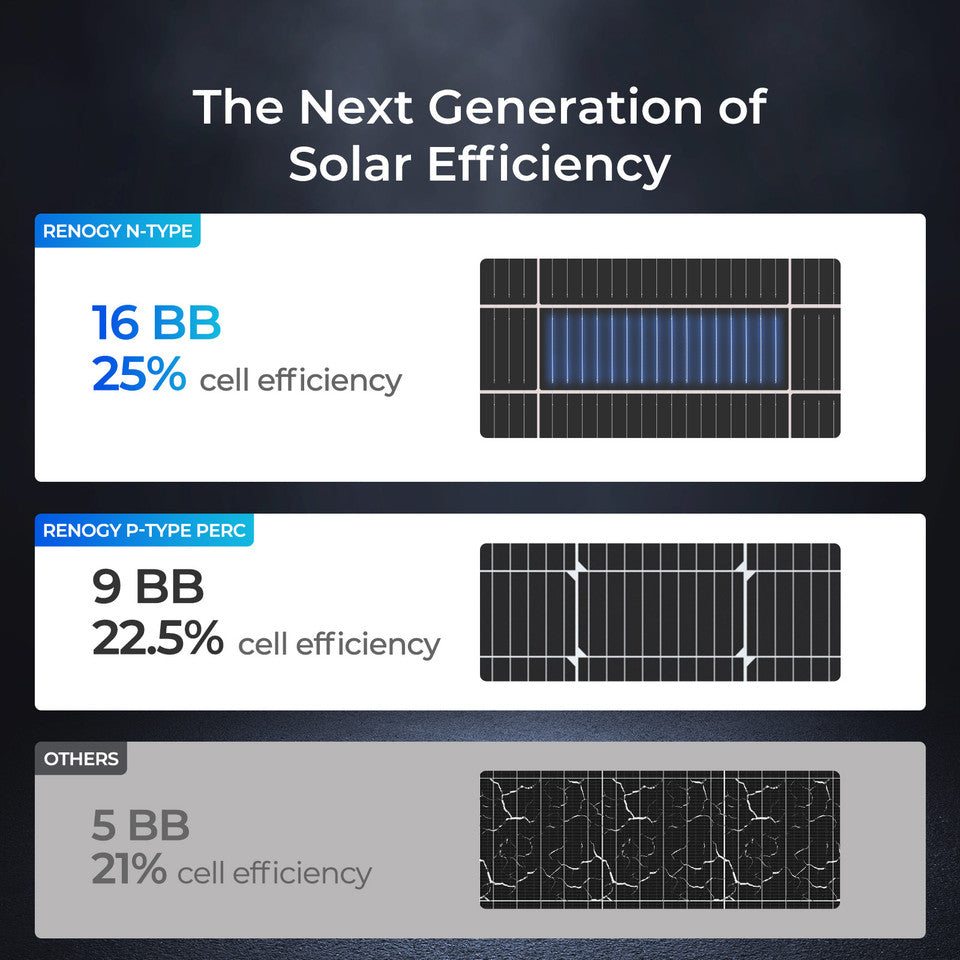

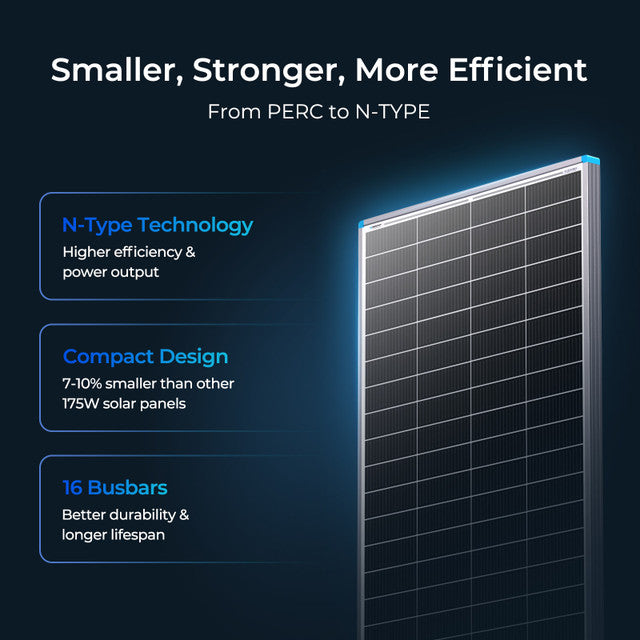

The Renogy 175W 12V Fixed Solar Panel Kit (RSP175DC-G1-AU) is a high-efficiency off-grid power solution commonly used for caravans, RVs, and marine applications in Australia. It utilizes 16-busbar (16BB) N-Type cells to provide superior performance and durability.
Key Features and Specifications:
- Power Output: 175W maximum power.

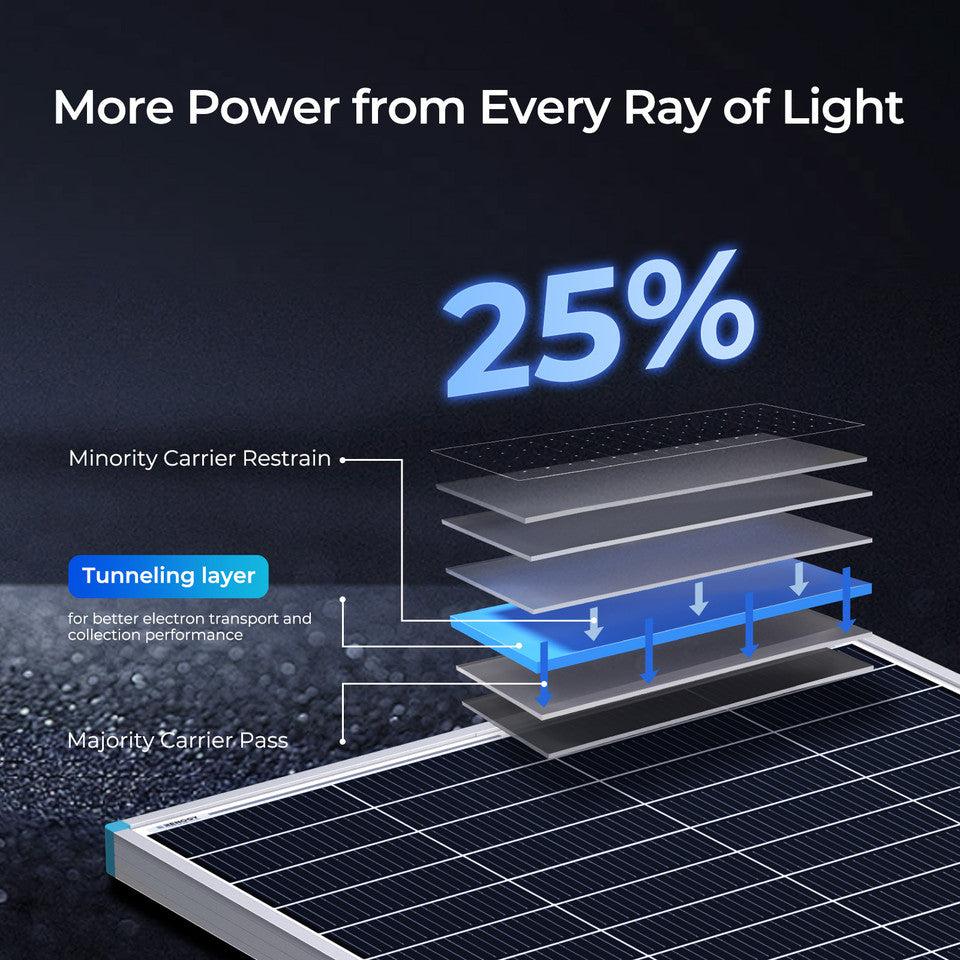

- Efficiency: Up to 25% module efficiency using N-Type solar cells.

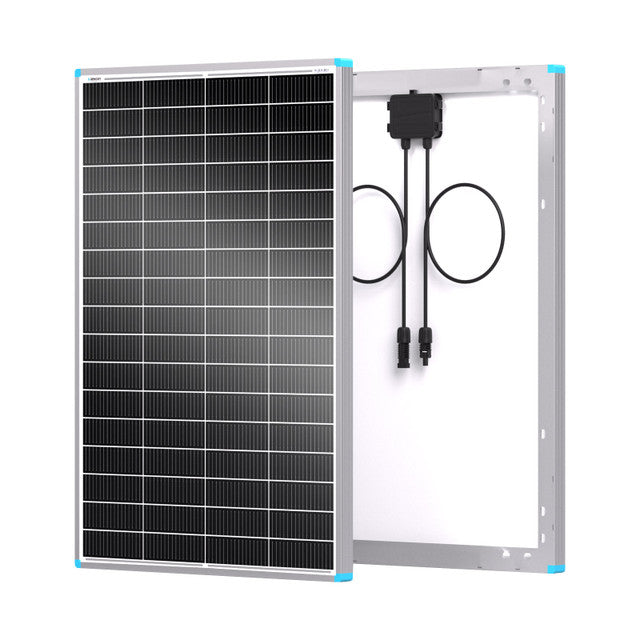

- Design: Rigid monocrystalline panel with an anti-reflective, low-iron tempered glass and a corrosion-resistant aluminum frame.

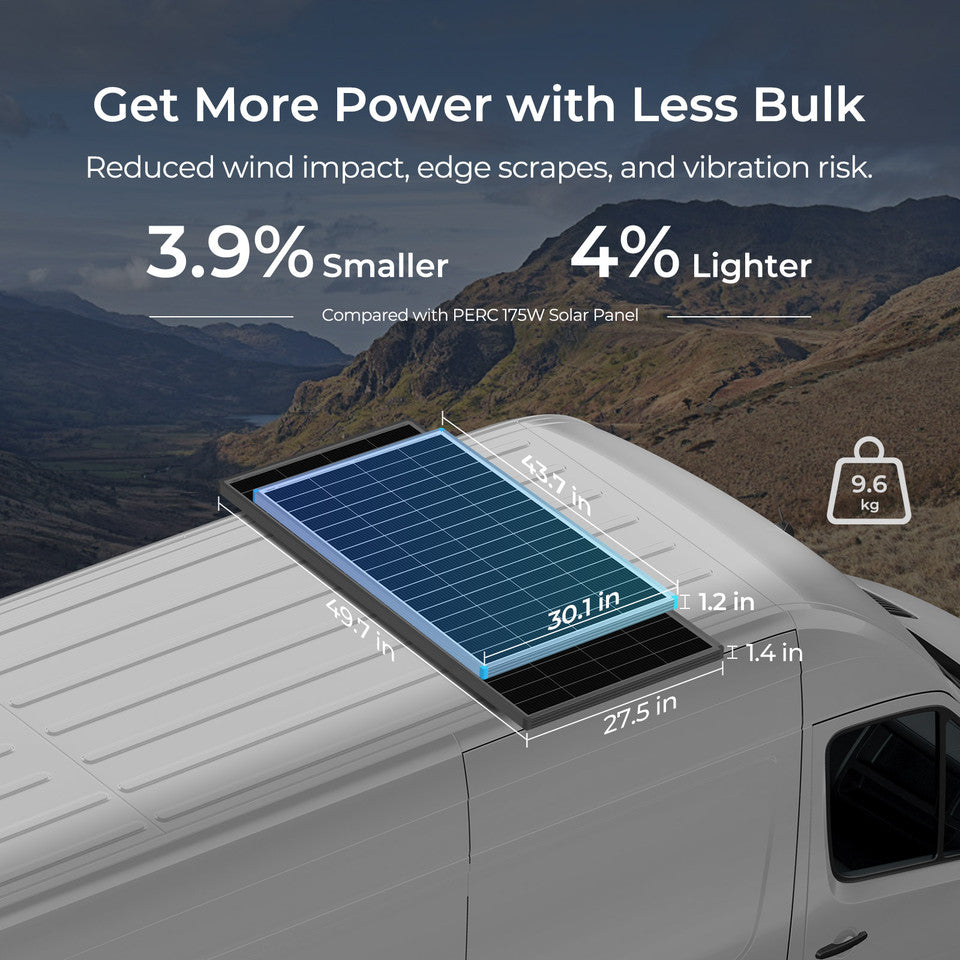

- Dimensions: Approximately 1110 x 764 x 30 mm.
- Weight: 9 kg.
- Performance: EL-tested to prevent hot-spot heating and features bypass diodes to minimize power drops caused by shade.

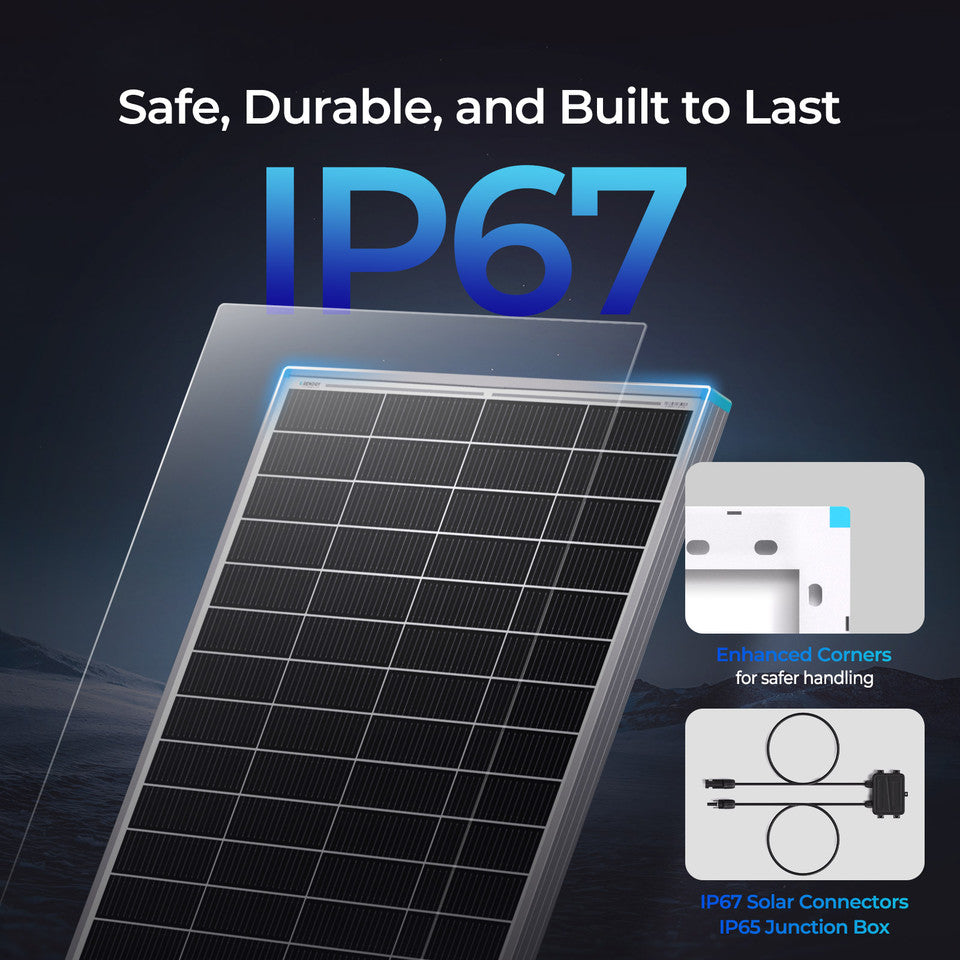

- Weather Resistance: IP65-rated junction box.
- Kit Components: includes 20A inline fuse and 2 pairs of Z-brackets for mounting.
-
Max Power at STC 175W
Short Circuit Current (Isc) 10.31A Optimum Operating Current (Imp) 9.67A Open Circuit Voltage (Voc) 21.6V Optimum Operating Voltage (Vmp) 18.1V Operating Temperature -40°C to 90°C / -40°F to 194°F Module Efficiency 19.80%
Maximum System Voltage 1000 VDC (UL) Number of Cells 32 Dimensions 1262mm x 699mm x 35mm
Weight 9kg Panel Leads (Pair) 3.3088mm2, 0.7m long
